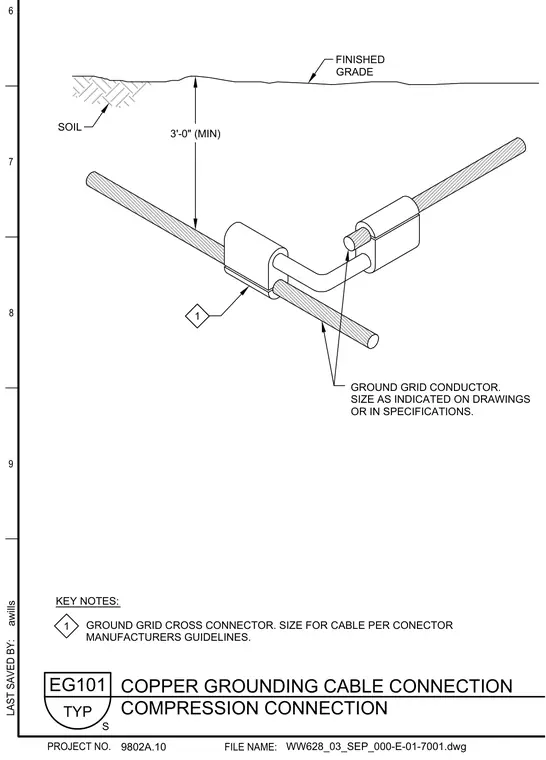

A copper ground grid conductor runs underground at a minimum depth of three feet below finished grade. Compression connections join the ground grid conductors together using cross connectors sized per the manufacturer guidelines.
FINISHED GRADE 1 1 EG101 TYP COMPRESSION CONNECTION COPPER GROUNDING CABLE CONNECTION S GROUND GRID CONDUCTOR. SIZE AS INDICATED ON DRAWINGS OR IN SPECIFICATIONS. 3'-0" (MIN) SOIL KEY NOTES: GROUND GRID CROSS CONNECTOR. SIZE FOR CABLE PER CONECTOR MANUFACTURERS GUIDELINES. PROJECT NO. LAST SAVED BY: FILE NAME: WW628_03_SEP_000-E-01-7001.dwg awills 9802A.10 9 8 7 6
