Emergency Generator and Diesel Particulate Filter Single Line Diagram

Materials

Elements

Bracing Anchors / Embeds Connections / Plates

About this detail

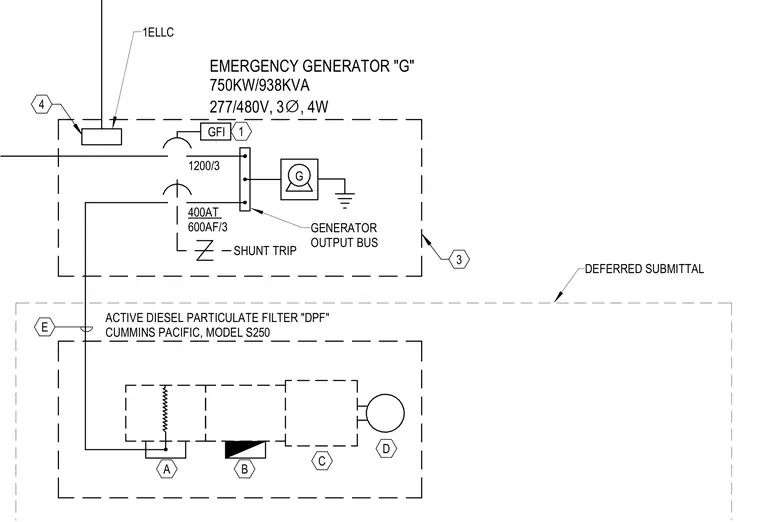

An emergency generator rated at 750 kilowatts and 938 kilovolt-amperes delivers 277/480 volt, 3-phase, 4-wire power through a generator output bus with 1200/3 and 400-ampere trip, 600-ampere frame shunt trip units. The system connects to an active diesel particulate filter, Cummins Pacific model S250, designated as a deferred submittal. Grounding and circuit interlocks integrate with transfer switch wiring designated as 1ELLC.
