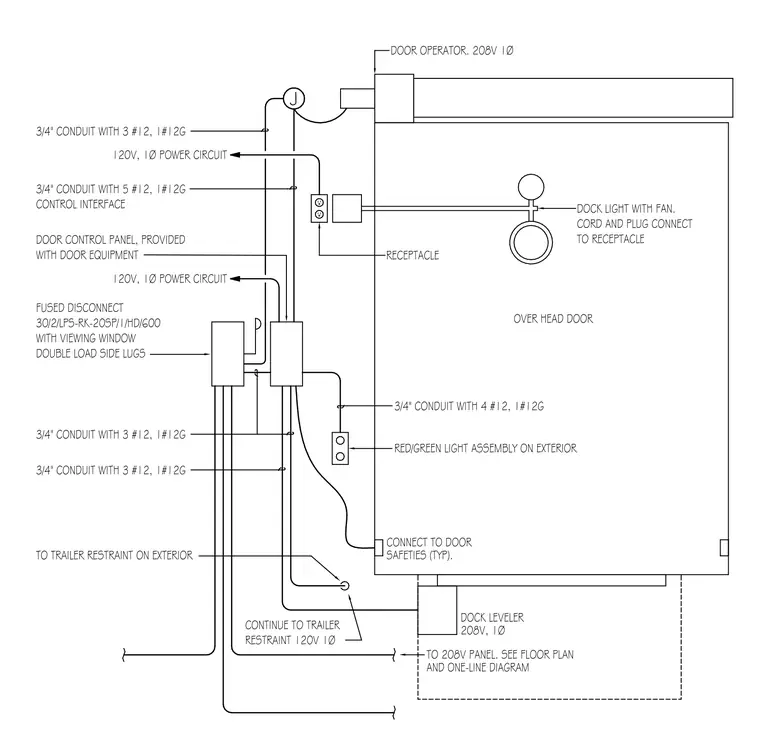

The assembly includes a 208-volt single-phase door operator and a dock leveler, both fed from the main panel. A fused disconnect switch with a viewing window and double load-side lugs provides power to the door control panel and the trailer restraint system. Control interfaces utilize three-quarter-inch conduits containing various configurations of number 12 gauge conductors and number 12 gauge ground wires. A receptacle is provided for the dock light and fan assembly, while a red and green light assembly is mounted on the exterior. Door safety sensors are wired to the control system, and the trailer restraint is integrated into the power circuit.
