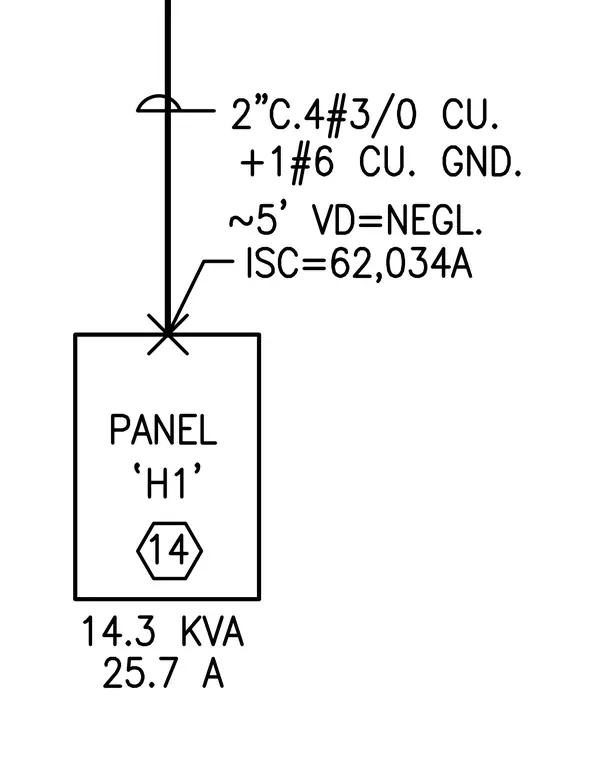

Electrical Panel H1 is supplied by a two-inch conduit containing four three-slash-zero copper conductors and one number-six copper ground wire over an approximate five-foot run with negligible voltage drop. The available short-circuit current is sixty-two thousand thirty-four amperes. The panel rating is fourteen point three kilovolt-amperes and twenty-five point seven amperes.
