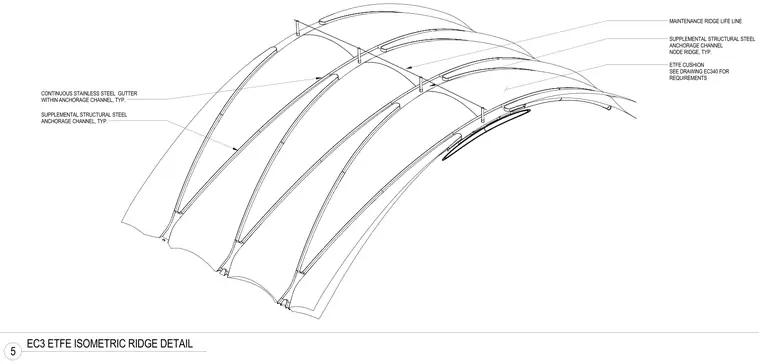

An ETFE cushion roof assembly is supported by supplemental structural steel anchorage channels located at the node ridges typically. A continuous stainless steel gutter runs within the anchorage channel typically. A maintenance ridge life line is installed along the ridge. ETFE cushions are provided per requirements on drawing EC340.
MAINTENANCE RIDGE LIFE LINE ETFE CUSHION SEE DRAWING EC340 FOR REQUIREMENTS SUPPLEMENTAL STRUCTURAL STEEL ANCHORAGE CHANNEL NODE RIDGE, TYP. SUPPLEMENTAL STRUCTURAL STEEL ANCHORAGE CHANNEL, TYP. CONTINUOUS STAINLESS STEEL GUTTER WITHIN ANCHORAGE CHANNEL, TYP. 5 EC3 ETFE ISOMETRIC RIDGE DETAIL
