An exterior flush-mounted fire alarm horn, bell, or speaker assembly is installed within an architectural wall using an Atlas/Soundelier 193-8-6 enclosure and a 4S junction box fed by conduit. An Atlas/Soundelier VP-161 baffle covers the unit, with the finish color verified by the architect. Installation requires a full operational mock-up for fire inspector approval.

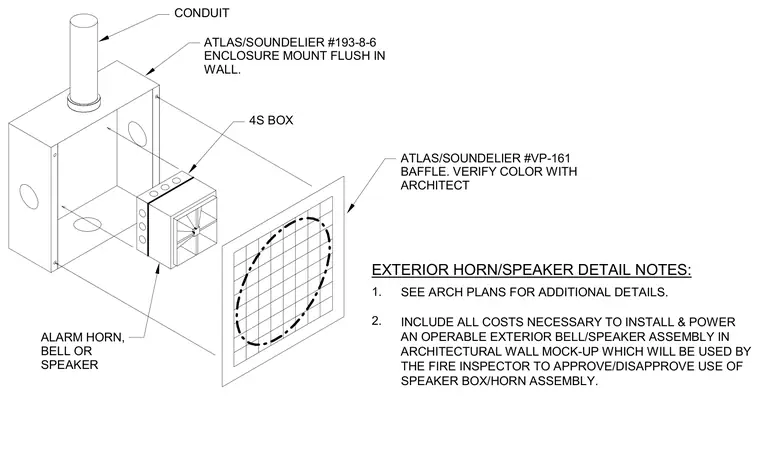

1. EXTERIOR HORN/SPEAKER DETAIL NOTES: CONDUIT 4S BOX 2. ATLAS/SOUNDELIER #193-8-6 ENCLOSURE MOUNT FLUSH IN WALL. ATLAS/SOUNDELIER #VP-161 BAFFLE. VERIFY COLOR WITH ARCHITECT ALARM HORN, BELL OR SPEAKER SEE ARCH PLANS FOR ADDITIONAL DETAILS. INCLUDE ALL COSTS NECESSARY TO INSTALL & POWER AN OPERABLE EXTERIOR BELL/SPEAKER ASSEMBLY IN ARCHITECTURAL WALL MOCK-UP WHICH WILL BE USED BY THE FIRE INSPECTOR TO APPROVE/DISAPPROVE USE OF SPEAKER BOX/HORN ASSEMBLY.
