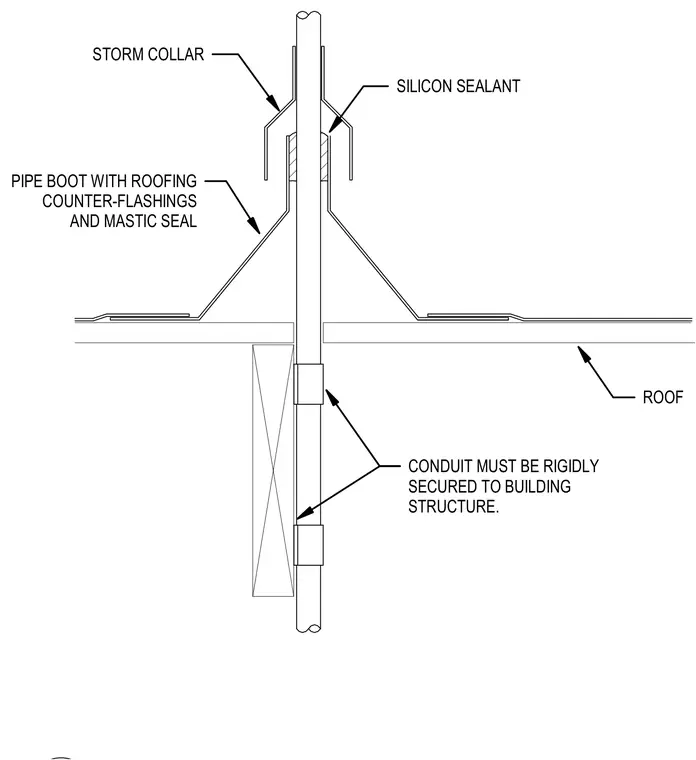

An electrical conduit penetrates the roof assembly and is rigidly secured to the building structure below the deck. A pipe boot with roofing counter-flashings and mastic seal surrounds the conduit at the roof surface. A storm collar fits tightly over the pipe boot and is sealed at the top with silicone sealant.
ROOF CONDUIT MUST BE RIGIDLY SECURED TO BUILDING STRUCTURE. SILICON SEALANT STORM COLLAR PIPE BOOT WITH ROOFING COUNTER-FLASHINGS AND MASTIC SEAL
