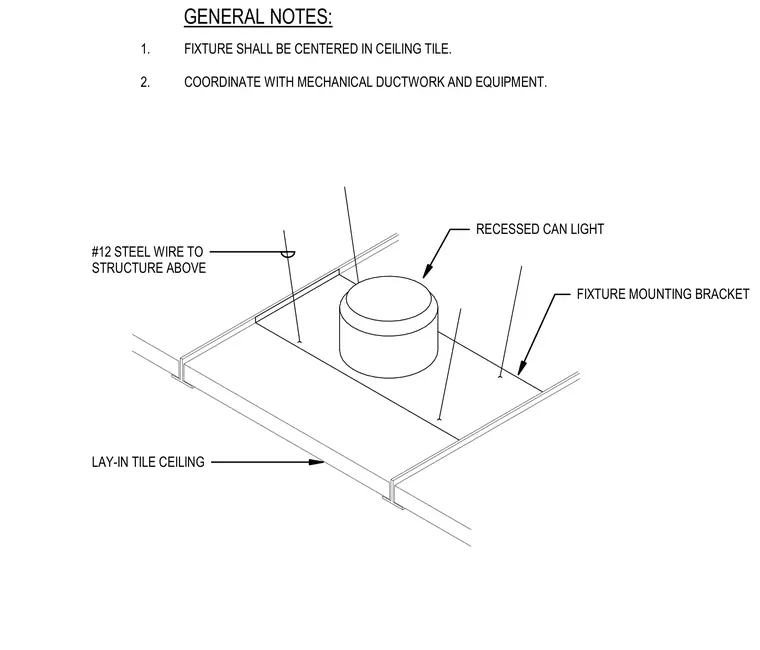

A recessed can light fixture is secured to a fixture mounting bracket supported by a lay-in tile ceiling grid. Number twelve steel wire suspends the assembly independently to the overhead structure. The fixture must be centered precisely in the ceiling tile and coordinated with nearby mechanical ductwork and equipment.
FIXTURE MOUNTING BRACKET LAY-IN TILE CEILING RECESSED CAN LIGHT #12 STEEL WIRE TO STRUCTURE ABOVE GENERAL NOTES: 1. FIXTURE SHALL BE CENTERED IN CEILING TILE. 2. COORDINATE WITH MECHANICAL DUCTWORK AND EQUIPMENT.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
