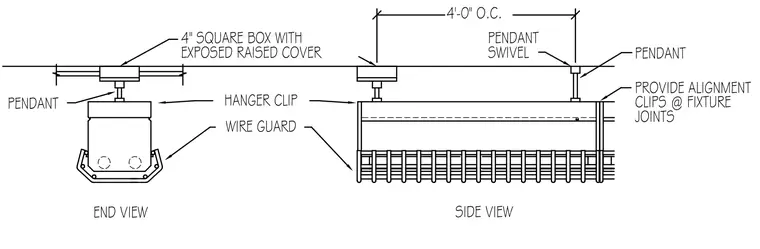

The linear light fixture is suspended from the ceiling structure using pendants attached to four-inch square boxes with exposed raised covers. Each pendant includes a swivel at the ceiling connection to allow for movement. The fixture is secured to the pendants via hanger clips, with alignment clips provided at all fixture joints. A wire guard is installed around the base of the fixture for protection. Pendants are spaced at four feet on center along the length of the fixture run.
