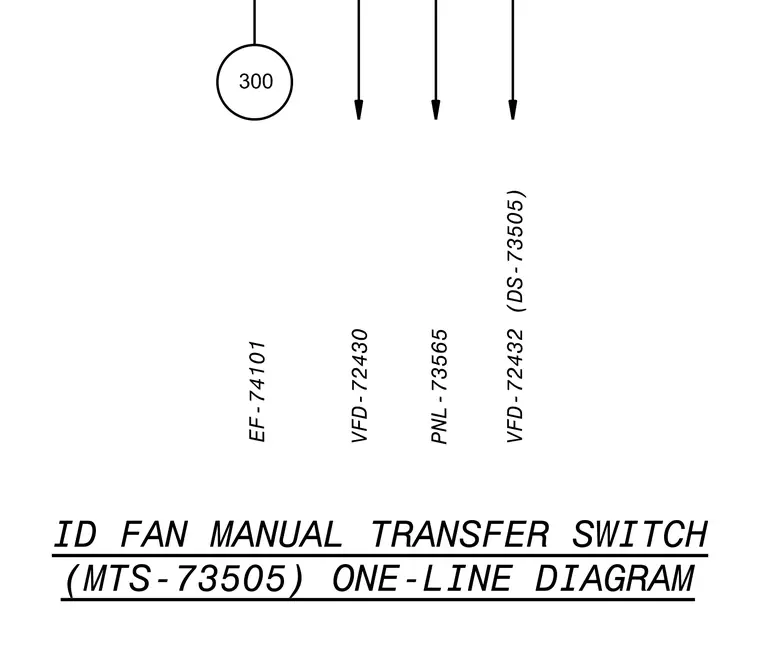

This electrical one-line diagram details the manual transfer switch setup designated as MTS-73505 for the ID fan. The schematic links several associated equipment tags including VFD-72432, panel PNL-73565, VFD-72430, and exhaust fan EF-74101.
ID FAN MANUAL TRANSFER SWITCH (MTS-73505) ONE-LINE DIAGRAM VFD-72432 (DS-73505) PNL- 73565 VFD-72430 O EF-74101 O CO
