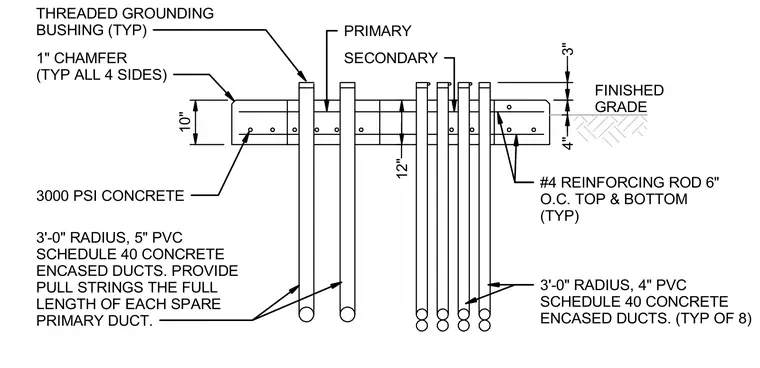

Three thousand psi concrete encases a duct bank reinforced with number four reinforcing rods placed at six inches on center top and bottom typically. The assembly incorporates five-inch PVC schedule forty concrete-encased ducts for primary lines and four-inch PVC schedule forty concrete-encased ducts typically numbering eight for secondary lines. Threaded grounding bushings are installed typically at the duct terminations. A one-inch chamfer is provided on all four sides of the concrete envelope. Pull strings are required inside the full length of each spare primary duct.
3000 PSI CONCRETE 3'-0" RADIUS, 5" PVC SCHEDULE 40 CONCRETE ENCASED DUCTS. PROVIDE PULL STRINGS THE FULL LENGTH OF EACH SPARE PRIMARY DUCT. #4 REINFORCING ROD 6" O.C. TOP & BOTTOM (TYP) SECONDARY PRIMARY FINISHED GRADE 3'-0" RADIUS, 4" PVC SCHEDULE 40 CONCRETE ENCASED DUCTS. (TYP OF 8) THREADED GROUNDING BUSHING (TYP) 1" CHAMFER (TYP ALL 4 SIDES) 10" 12" 3" 4"
