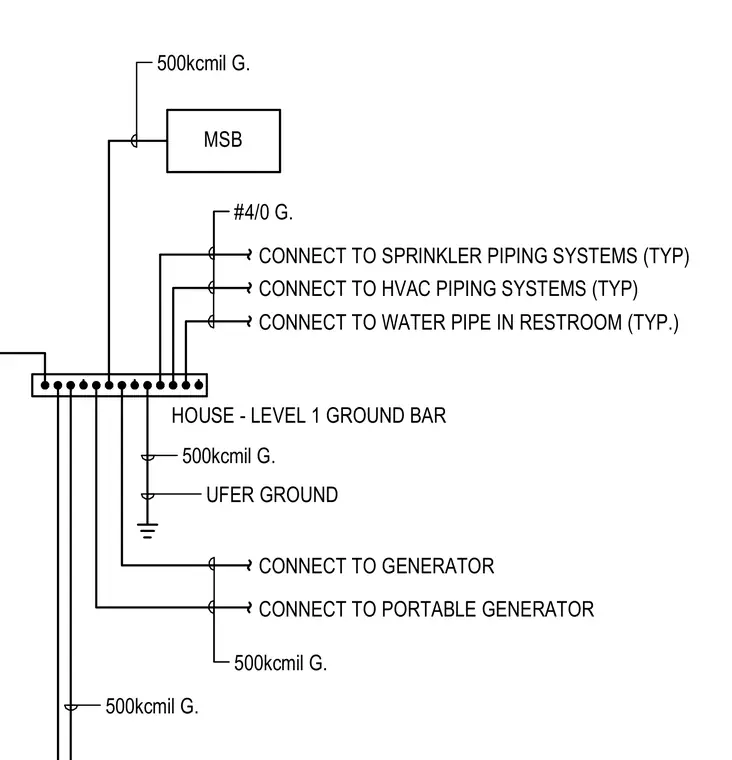

The grounding system ties the main switchboard and ufer ground to a Level 1 house ground bar using five-hundred kcmil copper conductors. Bonding connections extend from the ground bar to typical sprinkler piping, HVAC piping, and restroom water piping systems using number four-zero conductors. Additional connections link the ground bar to a stationary generator and a portable generator. All metallic utility piping systems are bonded to the ground bar to maintain an equipotential plane.
CONNECT TO WATER PIPE IN RESTROOM (TYP.) CONNECT TO HVAC PIPING SYSTEMS (TYP) CONNECT TO SPRINKLER PIPING SYSTEMS (TYP) MSB HOUSE - LEVEL 1 GROUND BAR UFER GROUND 500kcmil G. #4/0 G. 500kcmil G. 500kcmil G. 500kcmil G. CONNECT TO PORTABLE GENERATOR CONNECT TO GENERATOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
