A cylindrical concrete pole base foundation measures 24 inches in diameter and extends to a depth determined by the structural engineer with a minimum of 72 inches. The structure consists of 3000 PSI concrete at 28 days with a 1-inch chamfer at the top edge extending 48 inches above grade. Internal reinforcement includes number 4 rebar hoops with number 4 ties spaced at 8 inches on center, along with embedded anchor bolts sized to match the pole. A conduit enters the side of the foundation within compacted fill surrounding the below-grade portion.

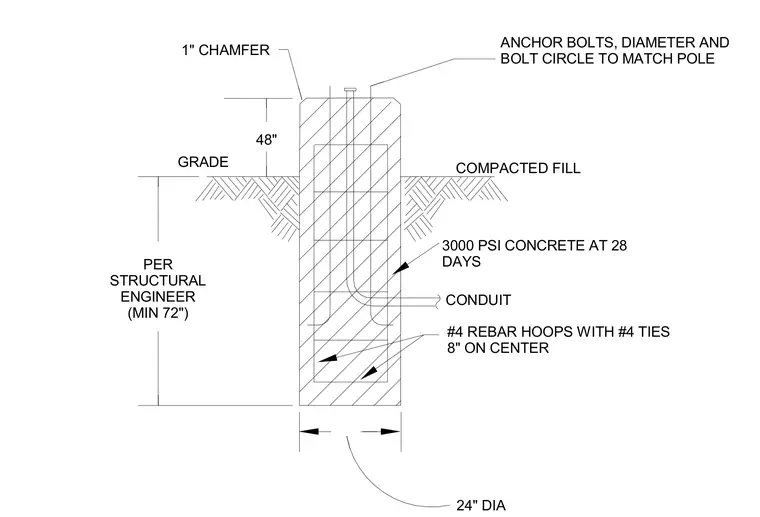

24" DIA 48" CONDUIT ANCHOR BOLTS, DIAMETER AND BOLT CIRCLE TO MATCH POLE COMPACTED FILL 3000 PSI CONCRETE AT 28 DAYS #4 REBAR HOOPS WITH #4 TIES 8" ON CENTER 1" CHAMFER GRADE PER STRUCTURAL ENGINEER (MIN 72")
