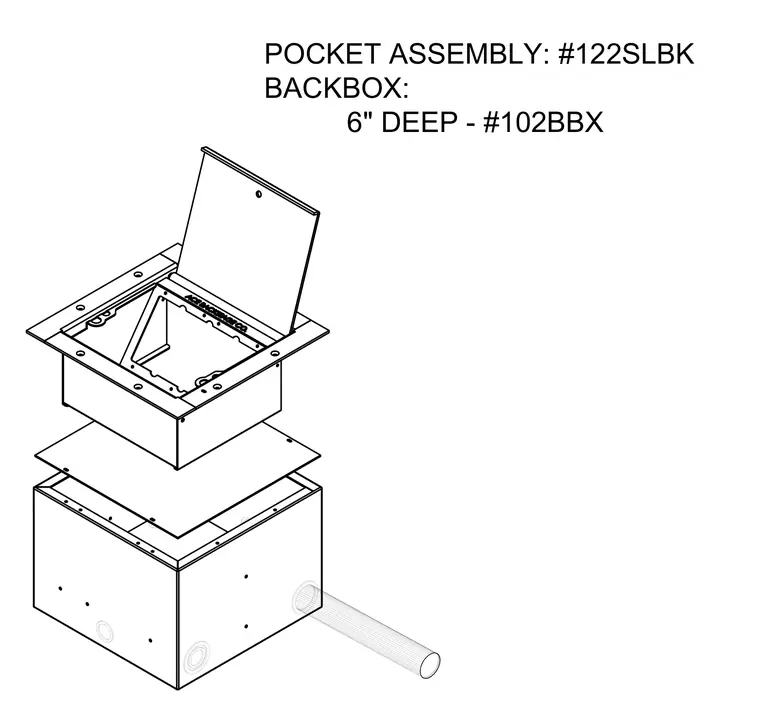

An exploded axonometric view shows a floor box pocket assembly numbered #122SLBK mounted above a six-inch deep backbox numbered #102BBX. The backbox includes a conduit connection stub extending from its side.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
