Level 4 East and Central Head House Electrical Power Distribution Diagram

About this detail

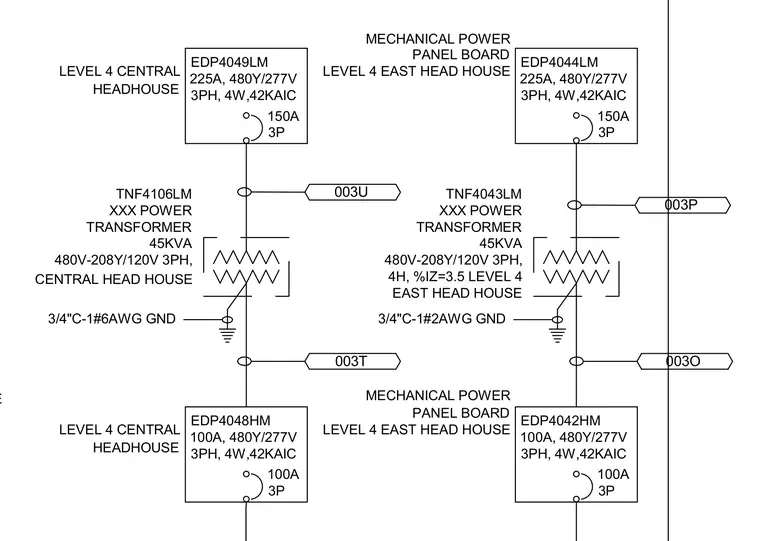

This electrical diagram details the power distribution for the Level 4 East and Central Head House areas, featuring 45kVA 480V to 208Y/120V 3-phase 4-wire power transformers with 3.5% impedance. The system incorporates panel boards such as EDP4048HM, EDP4042HM, EDP4049LM, and EDP4044LM rated at 100A and 225A with 480Y/277V 3-phase 4-wire configuration and 42kAIC short circuit rating. Transformers TNF4106LM and TNF4043LM are fed through 150A 3-pole overcurrent protection and include grounding conductors sized at 3/4-inch conduit with #6 AWG and #2 AWG ground wires respectively.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
