Electrical · E-K9H9G

Two-Hole Long Barrel Compression Lug Schedule and Detail

Materials

Aluminum

Elements

Windows

Connections

Bolted Connection

About this detail

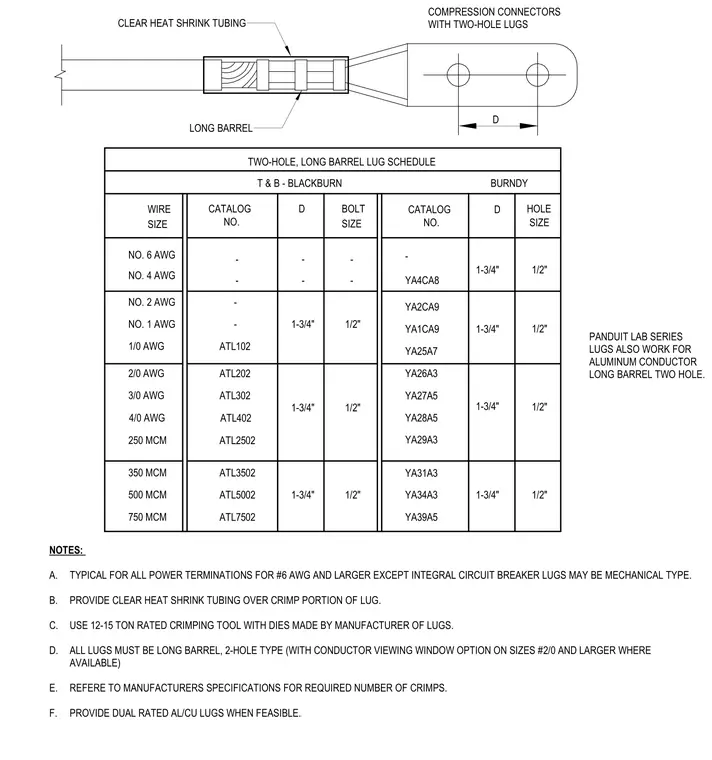

A long barrel compression connector features a two-hole tongue and clear heat shrink tubing applied over the crimp portion. An accompanying schedule lists catalog numbers, hole sizes, and bolt spacings for wire sizes ranging from number 6 American wire gauge up to 750 thousand circular mils for manufacturers including Thomas & Betts, Blackburn, and Burndy. Installation notes specify the use of twelve to fifteen ton rated crimping tools with manufacturer-matching dies, require dual rated aluminum-copper lugs when feasible, and mandate clear heat shrink tubing over all power terminations for number 6 American wire gauge and larger.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
