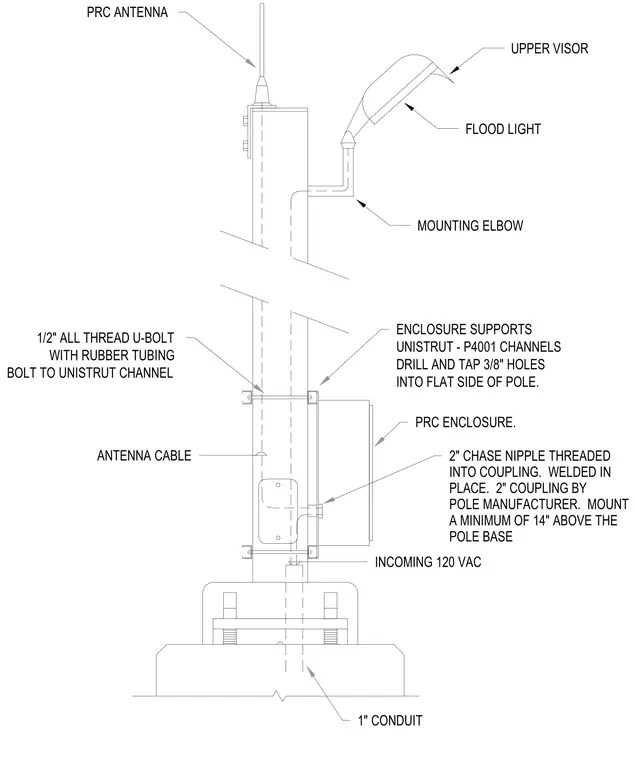

An electrical pole mounting assembly carries a PRC enclosure, PRC antenna, and a flood light with an upper visor attached via a mounting elbow. The PRC enclosure is supported by Unistrut P4001 channels secured with half-inch all-thread U-bolts wrapped in rubber tubing and bolted to the Unistrut channel, along with drilled and tapped three-eighths-inch holes into the flat side of the pole. Power and signal routing utilize a one-inch conduit incoming from the base, connecting through a two-inch chase nipple threaded into a coupling that is welded in place to a two-inch coupling provided by the pole manufacturer, positioned a minimum of fourteen inches above the pole base.
1" CONDUIT INCOMING 120 VAC 2" CHASE NIPPLE THREADED INTO COUPLING. WELDED IN PLACE. 2" COUPLING BY POLE MANUFACTURER. MOUNT A MINIMUM OF 14" ABOVE THE POLE BASE 1/2" ALL THREAD U-BOLT WITH RUBBER TUBING BOLT TO UNISTRUT CHANNEL ENCLOSURE SUPPORTS UNISTRUT - P4001 CHANNELS DRILL AND TAP 3/8" HOLES INTO FLAT SIDE OF POLE. PRC ENCLOSURE. PRC ANTENNA ANTENNA CABLE FLOOD LIGHT MOUNTING ELBOW UPPER VISOR
