Electrical · E-K7B5Y

Typical Addressable Loop "Fa"

Elements

About this detail

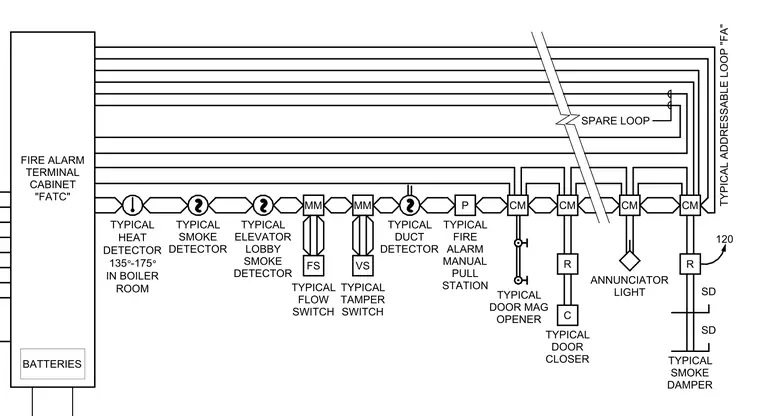

A fire alarm terminal cabinet labeled FATC connects to a typical addressable loop FA that services multiple initiating and control devices. The loop links a heat detector rated for 135 to 175 degrees in the boiler room, a standard smoke detector, an elevator lobby smoke detector, and a duct detector. Monitor and control modules tie in flow switches, tamper switches, manual pull stations, door magnetic openers, door closers, annunciator lights, and smoke dampers. Backup batteries are housed within the main terminal cabinet arrangement alongside spare loop connections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
