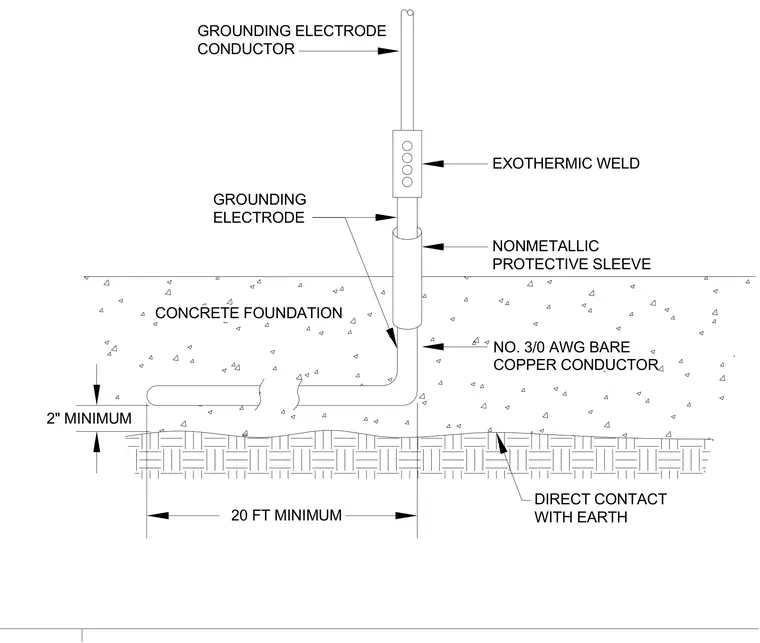

A number 3/0 AWG bare copper conductor serves as the grounding electrode embedded directly within a concrete foundation in direct contact with the earth for a minimum length of twenty feet. The horizontal portion of the conductor maintains a two-inch minimum clearance from the bottom of the footing. A nonmetallic protective sleeve surrounds the conductor where it transitions through the concrete surface. An exothermic weld connects the grounding electrode to the vertical grounding electrode conductor extending upward.
CONCRETE FOUNDATION NO. 3/0 AWG BARE COPPER CONDUCTOR GROUNDING ELECTRODE NONMETALLIC PROTECTIVE SLEEVE EXOTHERMIC WELD GROUNDING ELECTRODE CONDUCTOR 20 FT MINIMUM DIRECT CONTACT WITH EARTH 2" MINIMUM
