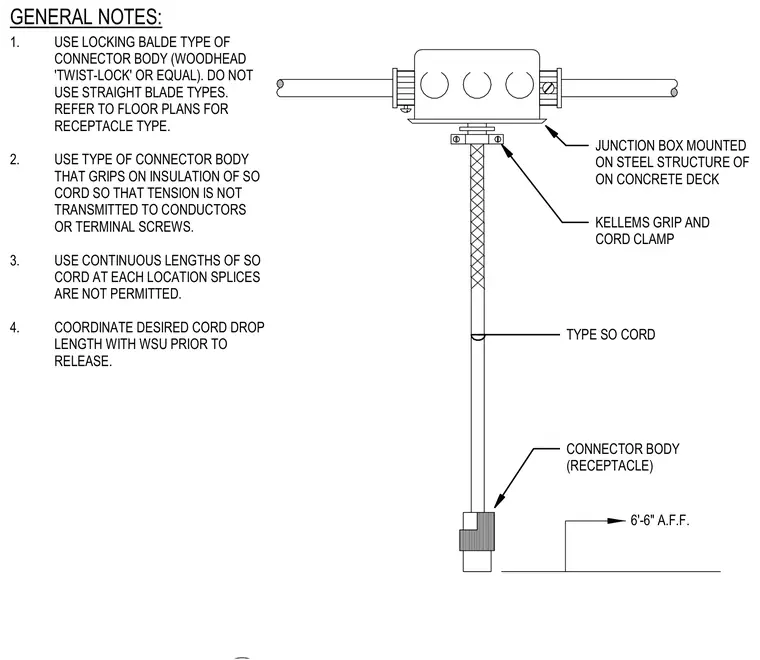

A junction box is mounted to the steel structure or concrete deck above and fitted with a Kellems grip and cord clamp to support the drop. A continuous length of type SO cord extends downward without splices, terminating at a locking-blade type connector body receptacle positioned at six feet six inches above the finished floor. The grip secures directly to the cord insulation to prevent tension transmission to internal conductors or terminal screws.
GENERAL NOTES: CONNECTOR BODY (RECEPTACLE) KELLEMS GRIP AND CORD CLAMP JUNCTION BOX MOUNTED ON STEEL STRUCTURE OF ON CONCRETE DECK TYPE SO CORD 6'-6" A.F.F. 1. USE LOCKING BALDE TYPE OF CONNECTOR BODY (WOODHEAD 'TWIST-LOCK' OR EQUAL). DO NOT USE STRAIGHT BLADE TYPES. REFER TO FLOOR PLANS FOR RECEPTACLE TYPE. 2. USE TYPE OF CONNECTOR BODY THAT GRIPS ON INSULATION OF SO CORD SO THAT TENSION IS NOT TRANSMITTED TO CONDUCTORS OR TERMINAL SCREWS. 3. USE CONTINUOUS LENGTHS OF SO CORD AT EACH LOCATION SPLICES ARE NOT PERMITTED. 4. COORDINATE DESIRED CORD DROP LENGTH WITH WSU PRIOR TO RELEASE.
