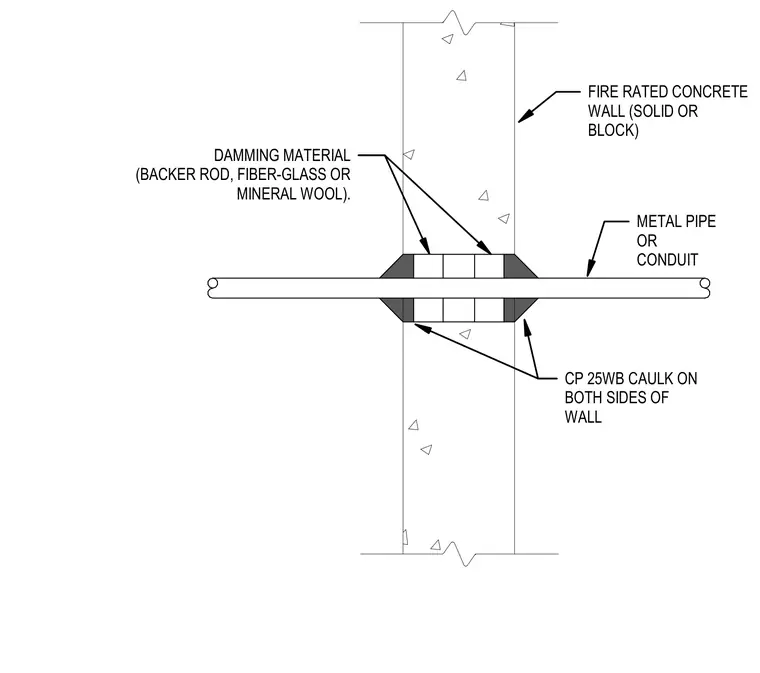

A metal pipe or conduit passes through a fire-rated concrete wall, which can be solid or block construction. The annular space around the pipe is packed with damming material such as backer rod, fiberglass, or mineral wool. CP 25WB firestop caulk is applied on both sides of the wall to seal the penetration.
CP 25WB CAULK ON BOTH SIDES OF WALL DAMMING MATERIAL (BACKER ROD, FIBER-GLASS OR MINERAL WOOL). METAL PIPE OR CONDUIT FIRE RATED CONCRETE WALL (SOLID OR BLOCK)
