Transformer Grounding Detail

Elements

About this detail

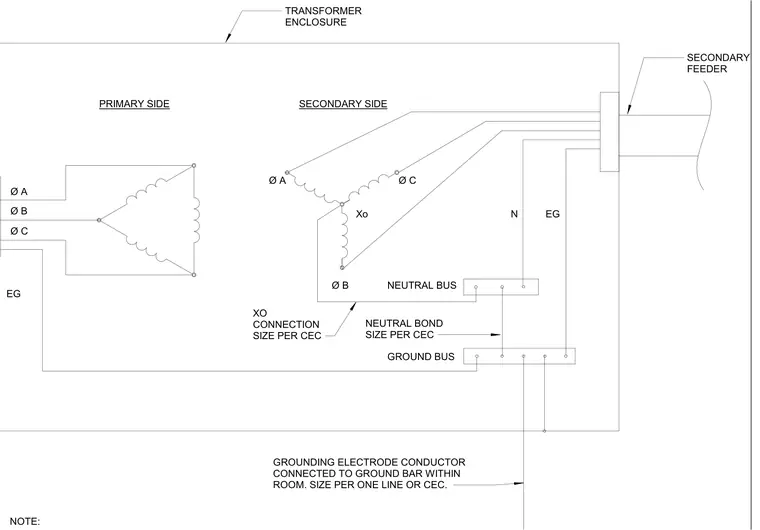

The primary side shows phases A, B, and C connecting to the delta configuration. The secondary side displays a wye configuration with phases A, B, C, and a neutral terminal Xo connecting to the neutral bus. A neutral bond connects the neutral bus to the ground bus, with sizing determined per the Canadian Electrical Code or one-line diagram. A grounding electrode conductor runs from the ground bus out of the transformer enclosure to connect to a ground bar within the room. Equipment ground and secondary feeders are routed accordingly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
