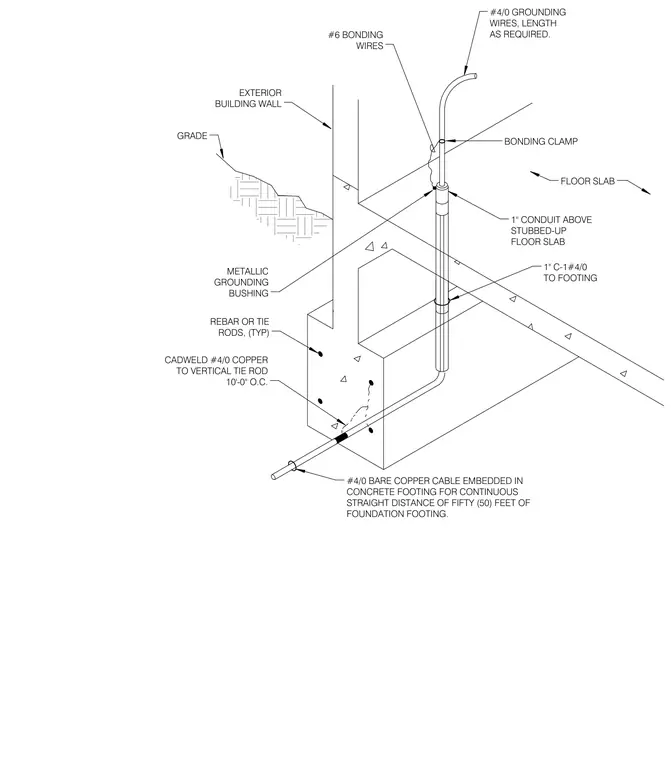

A number four-zero bare copper cable is embedded within the concrete foundation footing for a continuous straight distance of fifty feet to serve as a concrete-encased electrode. This cable connects via a cadweld to a vertical rebar or tie rod spaced at ten feet on center within the footing. A conduit extends up through the floor slab, terminated with a metallic grounding bushing and secured with a bonding clamp. Number four-zero grounding wires of required length and number six bonding wires route up the exterior building wall.
#4/0 GROUNDING WIRES, LENGTH AS REQUIRED. #6 BONDING WIRES EXTERIOR BUILDING WALL BONDING CLAMP 1" CONDUIT ABOVE STUBBED-UP FLOOR SLAB 1" C-1#4/0 TO FOOTING GRADE CADWELD #4/0 COPPER TO VERTICAL TIE ROD 10'-0" O.C. #4/0 BARE COPPER CABLE EMBEDDED IN CONCRETE FOOTING FOR CONTINUOUS STRAIGHT DISTANCE OF FIFTY (50) FEET OF FOUNDATION FOOTING. REBAR OR TIE RODS, (TYP) METALLIC GROUNDING BUSHING FLOOR SLAB
