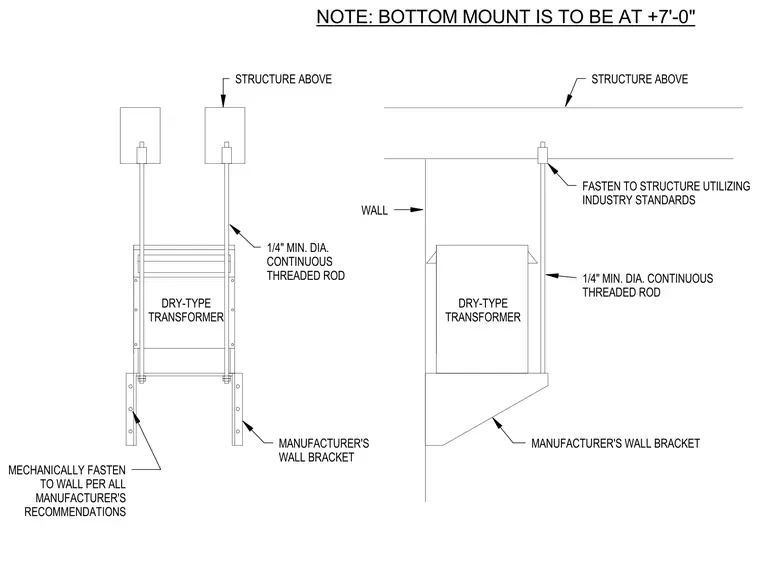

A dry-type transformer is secured to the wall utilizing the manufacturer's wall bracket mechanically fastened per all manufacturer recommendations, with the bottom mount positioned at plus seven feet zero inches. The unit is suspended from the structure above using one-quarter inch minimum diameter continuous threaded rods fastened to the structure utilizing industry standards.
DRY-TYPE TRANSFORMER DRY-TYPE TRANSFORMER STRUCTURE ABOVE STRUCTURE ABOVE FASTEN TO STRUCTURE UTILIZING INDUSTRY STANDARDS 1/4" MIN. DIA. CONTINUOUS THREADED ROD WALL 1/4" MIN. DIA. CONTINUOUS THREADED ROD MANUFACTURER'S WALL BRACKET MANUFACTURER'S WALL BRACKET MECHANICALLY FASTEN TO WALL PER ALL MANUFACTURER'S RECOMMENDATIONS NOTE: BOTTOM MOUNT IS TO BE AT +7'-0"
