Motor Operated Valve Electrical Schematic Diagram

About this detail

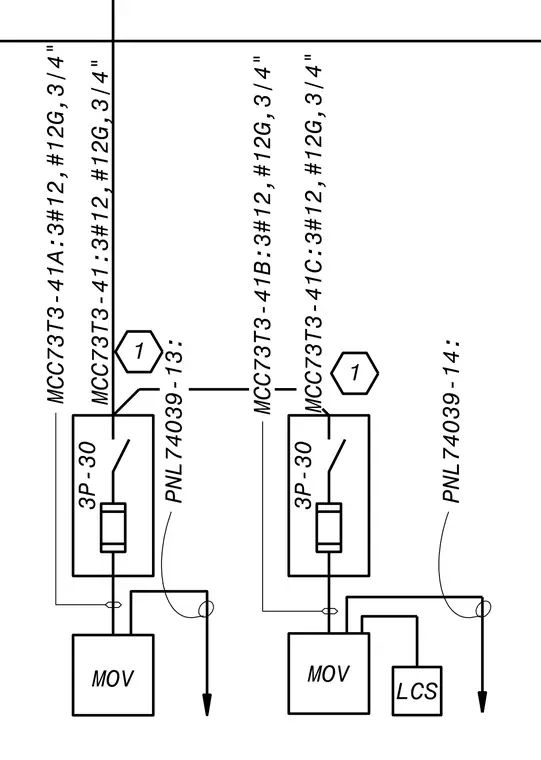

This electrical schematic details the control and power wiring for motor operated valves connected to panels PNL74039-13 and PNL74039-14. Circuits are routed from motor control center feeds designated as MCC73T3-41 through MCC73T3-41C utilizing three number twelve conductors with a ground wire in three-quarter inch conduit. Local control stations and fused three-pole thirty-amp disconnect switches interface directly with the motor operated valve units. Hexagon detail tags reference associated electrical layout sheets.
