A recessed troffer lighting fixture is integrated into a lay-in grid ceiling system with independent support. One fixture clamp is provided per side for each fixture. A wire hanger is positioned at each corner of the fixture and runs independent of the ceiling support system.

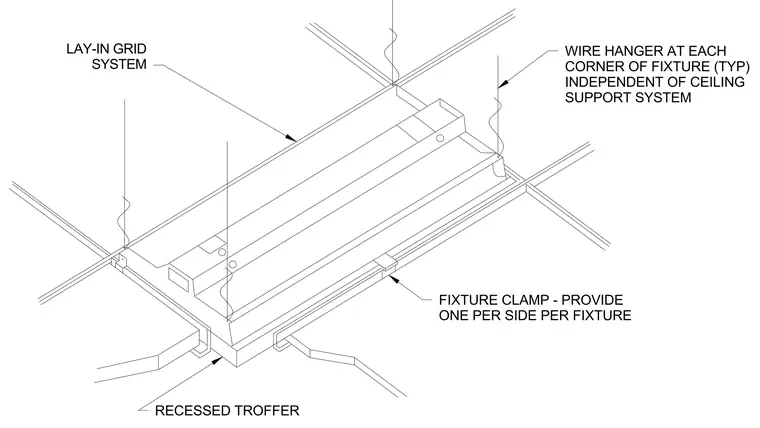

FIXTURE CLAMP - PROVIDE ONE PER SIDE PER FIXTURE RECESSED TROFFER LAY-IN GRID SYSTEM WIRE HANGER AT EACH CORNER OF FIXTURE (TYP) INDEPENDENT OF CEILING SUPPORT SYSTEM
