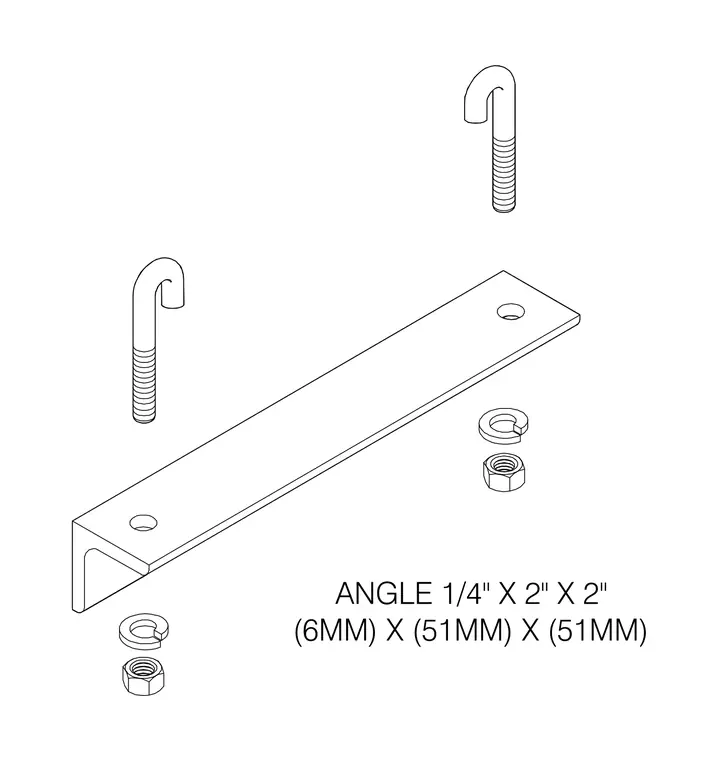

An angle measuring 1/4 inch by 2 inches by 2 inches, also dimensioned as 6 millimeters by 51 millimeters by 51 millimeters, is fastened using two threaded hook anchors. Each anchor receives a lock washer and a hex nut on the threaded end to secure the assembly.
