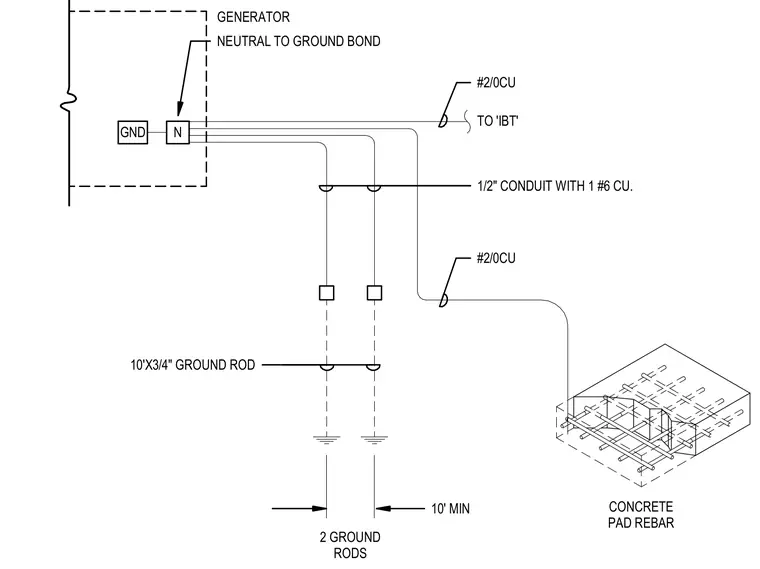

The generator neutral-to-ground bond connects to the generator grounding terminal using number two-slash-zero copper wire. Two ten-foot by three-quarter-inch ground rods are installed with a minimum ten-foot separation. A half-inch conduit containing one number six copper conductor runs to the IBT. An additional number two-slash-zero copper conductor connects to the concrete pad reinforcing steel.
GENERATOR NEUTRAL TO GROUND BOND #2/0CU TO 'IBT' 1/2" CONDUIT WITH 1 #6 CU. #2/0CU 10'X3/4" GROUND ROD 10' MIN 2 GROUND RODS CONCRETE PAD REBAR N GND
