An exterior wall mount video surveillance camera connects to a four-inch square electrical box. A three-quarter-inch conduit and data cabling run from the box to the nearest data room or cable tray. The installation includes Cat 6A cable, CommScope Cat 6A U/UTP plenum cord, and an RJ45 to ceiling connector with part number CCA-CAT6A-BK-2FT.

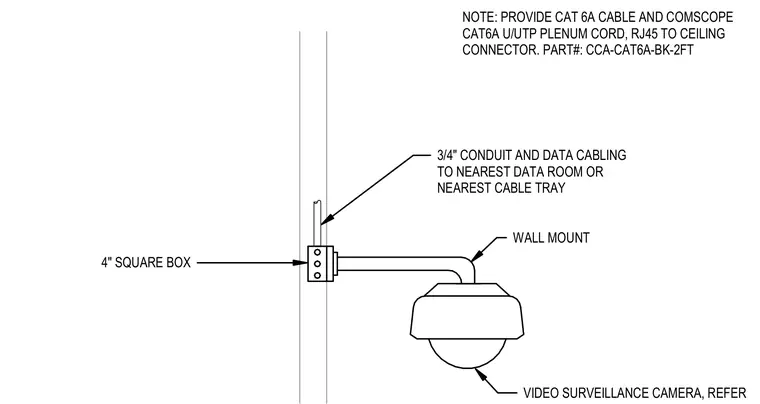

3/4" CONDUIT AND DATA CABLING TO NEAREST DATA ROOM OR NEAREST CABLE TRAY 4" SQUARE BOX WALL MOUNT VIDEO SURVEILLANCE CAMERA, REFER NOTE: PROVIDE CAT 6A CABLE AND COMSCOPE CAT6A U/UTP PLENUM CORD, RJ45 TO CEILING CONNECTOR. PART#: CCA-CAT6A-BK-2FT
