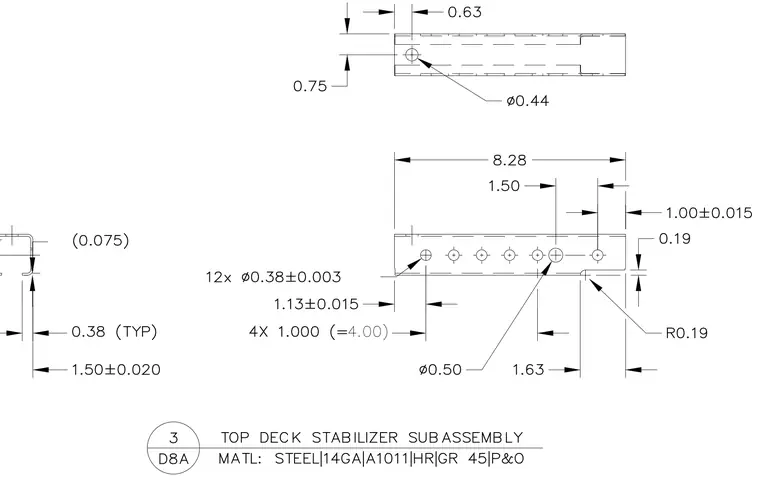

This subassembly is formed from fourteen gauge A1011 hot-rolled pickled and oiled steel with a material thickness of zero point zero seventy-five inches. The component features multiple punched holes including twelve zero point thirty-eight inch diameter holes with tight tolerances and four one-inch spaced holes along the main body. Dimensions specify a total length of eight point twenty-eight inches with precise edge distances and corner radii of zero point nineteen inches. Formed flanges and bends provide structural rigidity for the top deck stabilizer configuration.
4X 1.000 (= 8.28 12x ∅0.38±0.003 0.63 1.50±0.020 (0.075) 0.38 (TYP) 1.13±0.015 ∅0.44 0.75 1.00±0.015 1.50 ∅0.50 0.19 1.63 R0.19 TOP DECK STABILIZER SUBASSEMBLY 3 D8A MATL: STEEL|14GA|A1011|HR|GR 45|P&O C J H = 4 () L 4.00) 1 T
