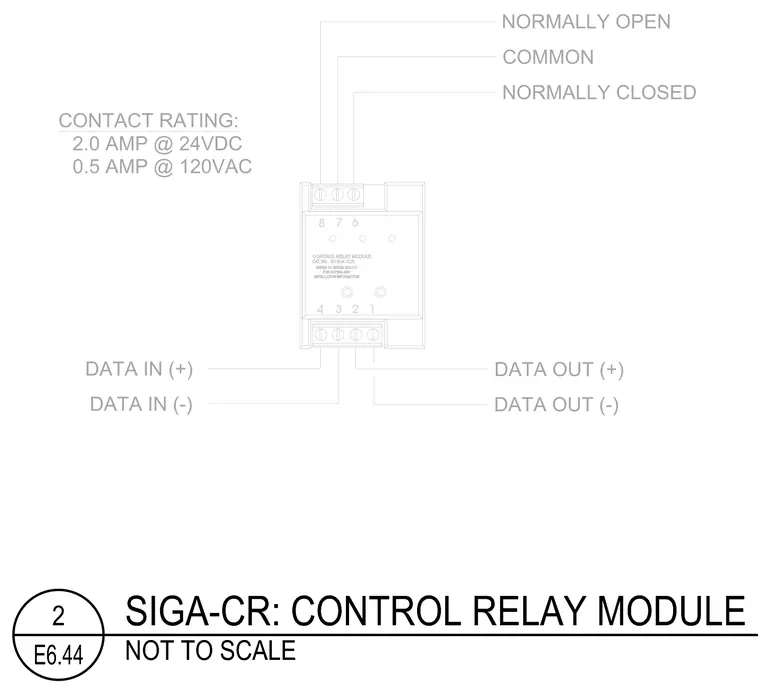

Terminal layout and electrical connections for fire alarm or signaling system integration within the SIGA-CR control relay module. Terminals one through four manage data input and data output lines for positive and negative polarity. Terminals six through eight provide normally closed, common, and normally open dry contacts. Contact ratings are specified as 2.0 amperes at 24 volts direct current and 0.5 amperes at 120 volts alternating current.
0.5 AMP @ 120VAC 2.0 AMP @ 24VDC CONTACT RATING: DATA IN (+) DATA IN (-) COMMON NORMALLY CLOSED NORMALLY OPEN DATA OUT (+) DATA OUT (-)
