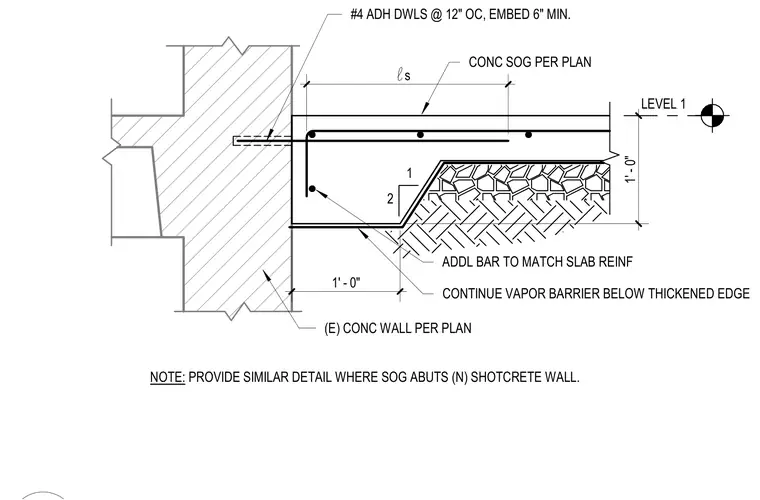

A concrete slab on grade abuts an existing concrete wall with a thickened edge and dowel connection. Number four adhesive dowels are spaced at twelve inches on center with a six-inch minimum embedment into the existing wall. An additional reinforcing bar matches the slab reinforcement within the thickened edge, and the vapor barrier continues uninterrupted below the thickened edge.
1 2 LEVEL 1 1' - 0" 1' - 0" #4 ADH DWLS @ 12" OC, EMBED 6" MIN. CONC SOG PER PLAN (E) CONC WALL PER PLAN s l NOTE: PROVIDE SIMILAR DETAIL WHERE SOG ABUTS (N) SHOTCRETE WALL. ADDL BAR TO MATCH SLAB REINF CONTINUE VAPOR BARRIER BELOW THICKENED EDGE
