Cable Tray with Seismic Supports

About this detail

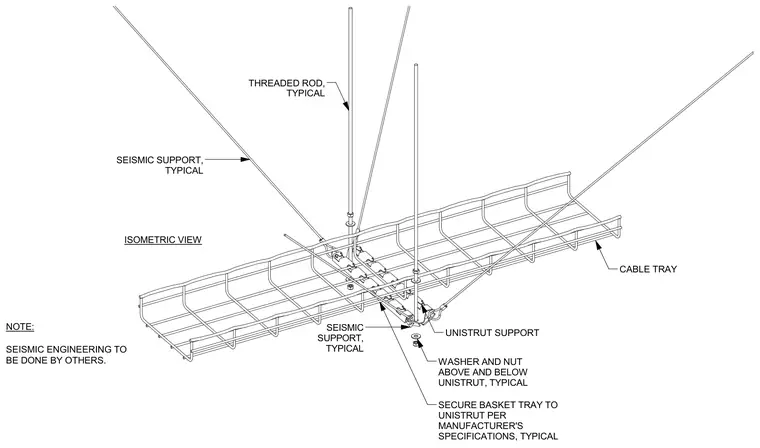

A suspended wire basket cable tray is supported by a horizontal Unistrut channel trapeze. The Unistrut hangs from vertical threaded rods secured with washers and nuts positioned both above and below the channel. Diagonal seismic support struts attach to the assembly to provide lateral restraint. The basket tray is fastened directly to the Unistrut according to the manufacturer specifications. A project note indicates that seismic engineering is to be completed by others.
