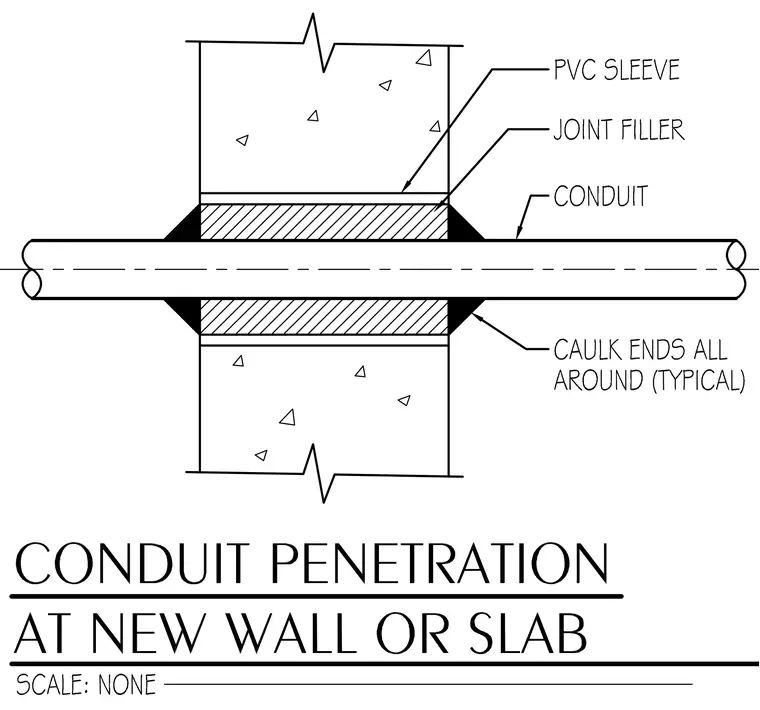

A continuous conduit passes through a poured concrete wall or slab via a surrounding PVC sleeve. Joint filler occupies the annular space between the PVC sleeve and the conduit. Caulk is applied continuously around both ends of the penetration assembly to seal the opening.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
