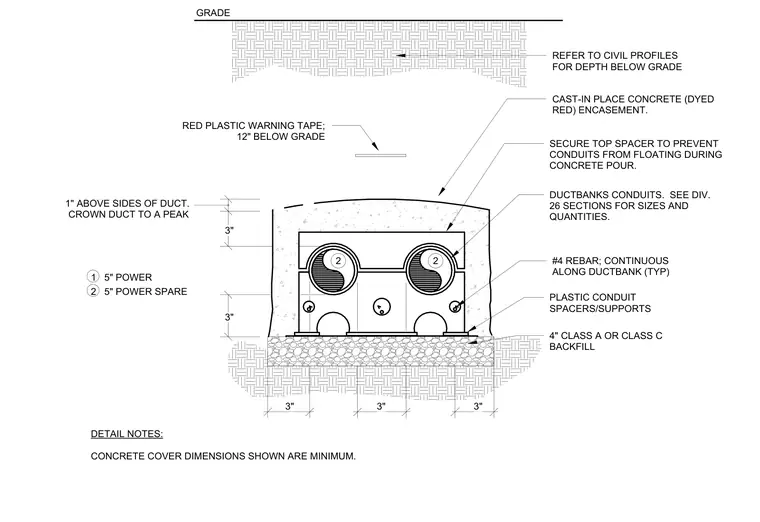

An underground electrical ductbank is formed with a cast-in-place concrete encasement dyed red, resting on a four-inch class A or class C backfill base. Plastic conduit spacers and supports position the conduits within the encasement, while a top spacer prevents floating during the concrete pour. Continuous number four reinforcing bars run longitudinally along the ductbank corners. The concrete crown is sloped to a peak maintaining a minimum one-inch cover over the sides of the duct. Red plastic warning tape is installed twelve inches below grade directly above the encasement.
3" 3" 3" 1" ABOVE SIDES OF DUCT. CROWN DUCT TO A PEAK 3" 2 2 CAST-IN PLACE CONCRETE (DYED RED) ENCASEMENT. SECURE TOP SPACER TO PREVENT CONDUITS FROM FLOATING DURING CONCRETE POUR. DUCTBANKS CONDUITS. SEE DIV. 26 SECTIONS FOR SIZES AND QUANTITIES. #4 REBAR; CONTINUOUS ALONG DUCTBANK (TYP) 4" CLASS A OR CLASS C BACKFILL PLASTIC CONDUIT SPACERS/SUPPORTS DETAIL NOTES: CONCRETE COVER DIMENSIONS SHOWN ARE MINIMUM. RED PLASTIC WARNING TAPE; 12" BELOW GRADE 1 5" POWER 2 5" POWER SPARE GRADE REFER TO CIVIL PROFILES FOR DEPTH BELOW GRADE 3"
