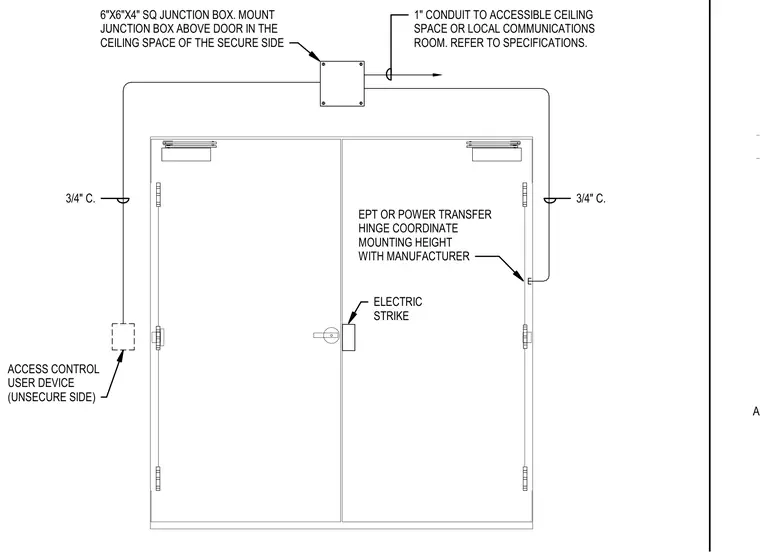

An electric strike and electrical power transfer hinge mount to a pair of doors with wiring routed through three-quarter-inch conduits to a six-inch by six-inch by four-inch square junction box located above the door in the ceiling space of the secure side. An access control user device on the unsecure side connects via three-quarter-inch conduit, and a one-inch conduit runs from the junction box to an accessible ceiling space or local communications room. Mounting heights are coordinated with the manufacturer.
6"X6"X4" SQ JUNCTION BOX. MOUNT JUNCTION BOX ABOVE DOOR IN THE CEILING SPACE OF THE SECURE SIDE 1" CONDUIT TO ACCESSIBLE CEILING SPACE OR LOCAL COMMUNICATIONS ROOM. REFER TO SPECIFICATIONS. ACCESS CONTROL USER DEVICE (UNSECURE SIDE) ELECTRIC STRIKE EPT OR POWER TRANSFER HINGE COORDINATE MOUNTING HEIGHT WITH MANUFACTURER 3/4" C. 3/4" C. A
