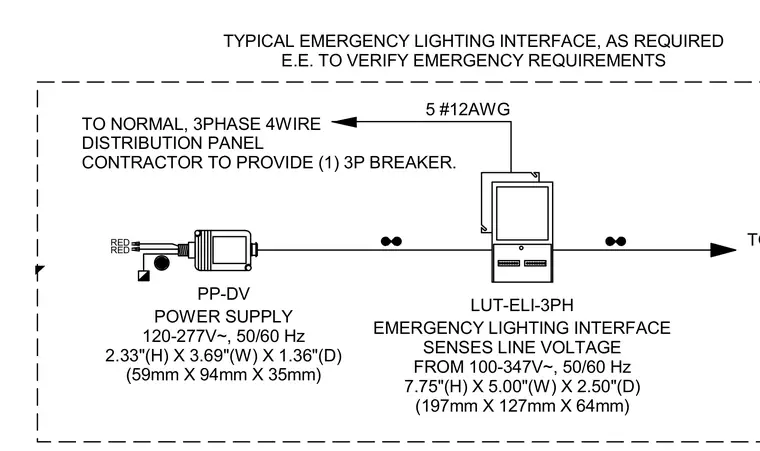

An emergency lighting interface system connects a 120-277V power supply unit to a LUT-ELI-3PH emergency lighting interface sensing line voltage from 100-347V. The power supply interfaces with a normal 3-phase 4-wire distribution panel requiring one three-pole breaker provided by the contractor. Wiring utilizes five #12 AWG red conductors connecting the power supply and interface components. The electrical engineer must verify all project-specific emergency requirements.
TO NORMAL, 3PHASE 4WIRE DISTRIBUTION PANEL CONTRACTOR TO PROVIDE (1) 3P BREAKER. 5 #12AWG RED RED PP-DV LUT-ELI-3PH POWER SUPPLY 120-277V~, 50/60 Hz 2.33"(H) X 3.69"(W) X 1.36"(D) (59mm X 94mm X 35mm) EMERGENCY LIGHTING INTERFACE SENSES LINE VOLTAGE FROM 100-347V~, 50/60 Hz 7.75"(H) X 5.00"(W) X 2.50"(D) (197mm X 127mm X 64mm) TO EMERGENCY TYPICAL EMERGENCY LIGHTING INTERFACE, AS REQUIRED E.E. TO VERIFY EMERGENCY REQUIREMENTS
