An interior recessed-mounted closed-circuit television camera is installed in the ceiling plane with its exact location coordinated prior to rough-in. A three-quarter-inch flexible conduit connects the camera housing to a four-inch square junction box anchored to the structure above. A three-quarter-inch conduit runs from the junction box to the intermediate distribution frame room. If the camera is located in a hard lid ceiling, the junction box is positioned in an accessible location as close to the camera as possible and labeled CCTV.

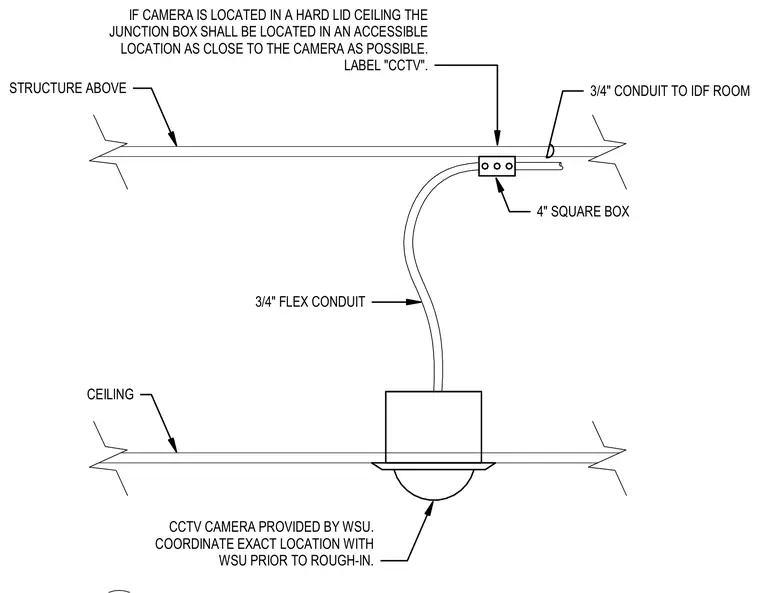

CEILING CCTV CAMERA PROVIDED BY WSU. COORDINATE EXACT LOCATION WITH WSU PRIOR TO ROUGH-IN. 3/4" FLEX CONDUIT STRUCTURE ABOVE 4" SQUARE BOX 3/4" CONDUIT TO IDF ROOM IF CAMERA IS LOCATED IN A HARD LID CEILING THE JUNCTION BOX SHALL BE LOCATED IN AN ACCESSIBLE LOCATION AS CLOSE TO THE CAMERA AS POSSIBLE. LABEL "CCTV".
