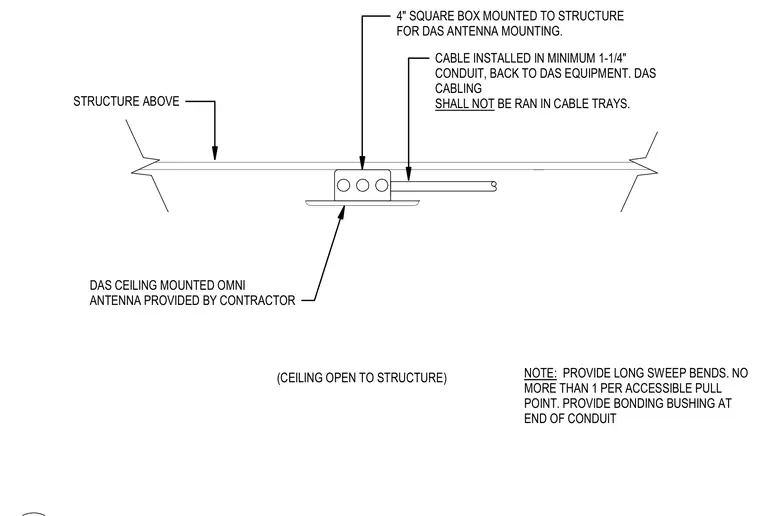

A four-inch square junction box is mounted directly to the overhead structure for distributed antenna system antenna mounting in areas with ceilings open to structure. Cabling runs from the antenna back to the distributed antenna system equipment inside a minimum one-and-one-quarter-inch conduit. Distributed antenna system cabling is prohibited from running in cable trays. The installation requires long sweep bends with no more than one bend per accessible pull point, and a bonding bushing must be provided at the end of the conduit.
4" SQUARE BOX MOUNTED TO STRUCTURE FOR DAS ANTENNA MOUNTING. CABLE INSTALLED IN MINIMUM 1-1/4" CONDUIT, BACK TO DAS EQUIPMENT. DAS CABLING SHALL NOT BE RAN IN CABLE TRAYS. STRUCTURE ABOVE DAS CEILING MOUNTED OMNI ANTENNA PROVIDED BY CONTRACTOR (CEILING OPEN TO STRUCTURE) NOTE: PROVIDE LONG SWEEP BENDS. NO MORE THAN 1 PER ACCESSIBLE PULL POINT. PROVIDE BONDING BUSHING AT END OF CONDUIT
