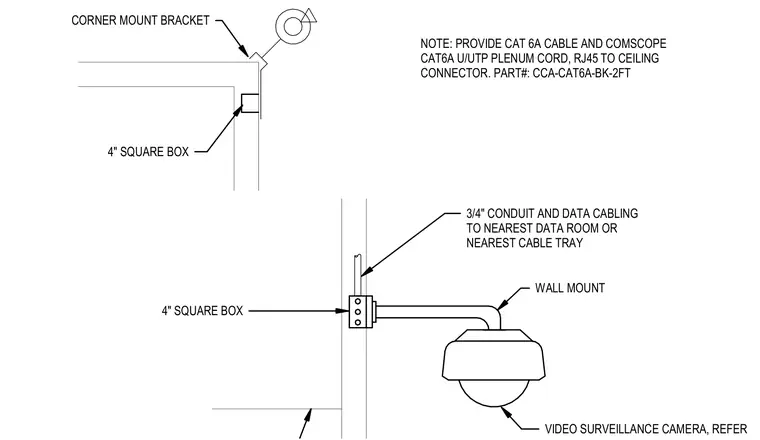

A video surveillance camera is wall-mounted at an exterior corner using a corner mount bracket and a four-inch square junction box. A three-quarter-inch conduit and data cabling run from the box to the nearest data room or cable tray. The installation requires CAT 6A cable and a CommScope CAT 6A U/UTP plenum cord with an RJ45 to ceiling connector, part number CCA-CAT6A-BK-2FT.
3/4" CONDUIT AND DATA CABLING TO NEAREST DATA ROOM OR NEAREST CABLE TRAY 4" SQUARE BOX WALL MOUNT VIDEO SURVEILLANCE CAMERA, REFER 4" SQUARE BOX CORNER MOUNT BRACKET NOTE: PROVIDE CAT 6A CABLE AND COMSCOPE CAT6A U/UTP PLENUM CORD, RJ45 TO CEILING CONNECTOR. PART#: CCA-CAT6A-BK-2FT
