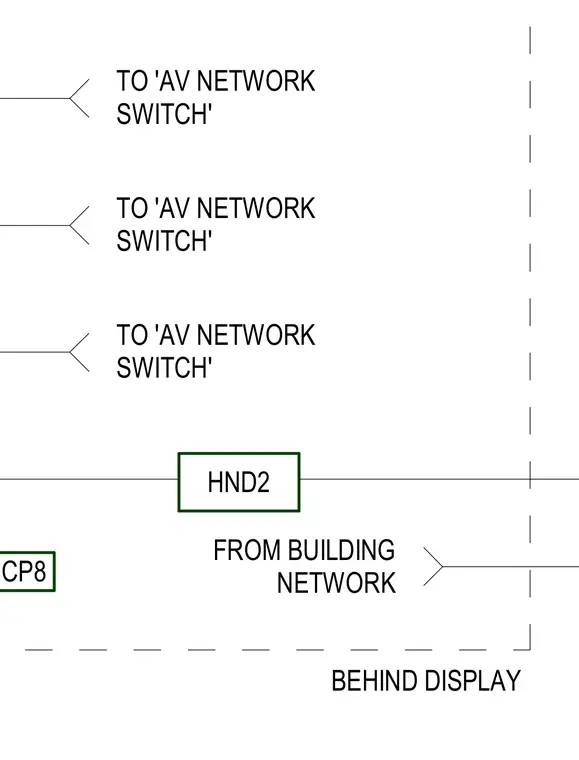

An AV network connection schematic routes data lines from the building network to three separate AV network switches located behind the display. Control panel HND2 CP8 integrates into the network run.
HND2 CP8 BEHIND DISPLAY TO 'AV NETWORK SWITCH' TO 'AV NETWORK SWITCH' TO 'AV NETWORK SWITCH' FROM BUILDING NETWORK
