An industrial duty cord reel is rigidly supported from a structural girder. The assembly includes twenty feet of three-conductor number ten type SO cord equipped with a positive-stop locking cord ratchet, Woodhead type 9242 or approved equal. An adjustable ball stop positions the drop, terminating in a Kellum grip by Hubbell and an electrical receptacle.

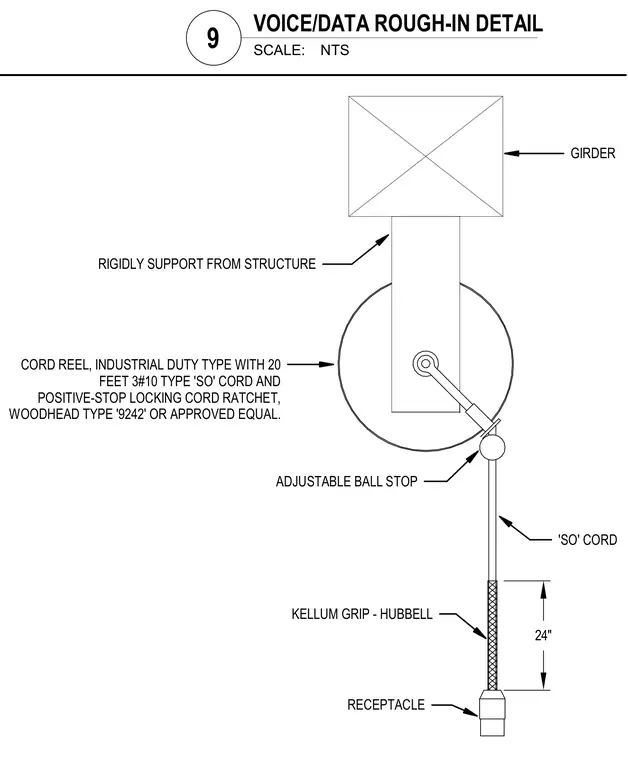

RECEPTACLE KELLUM GRIP - HUBBELL ADJUSTABLE BALL STOP CORD REEL, INDUSTRIAL DUTY TYPE WITH 20 FEET 3#10 TYPE 'SO' CORD AND POSITIVE-STOP LOCKING CORD RATCHET, WOODHEAD TYPE '9242' OR APPROVED EQUAL. RIGIDLY SUPPORT FROM STRUCTURE GIRDER 'SO' CORD 24" SCALE: NTS VOICE/DATA ROUGH-IN DETAIL 9
