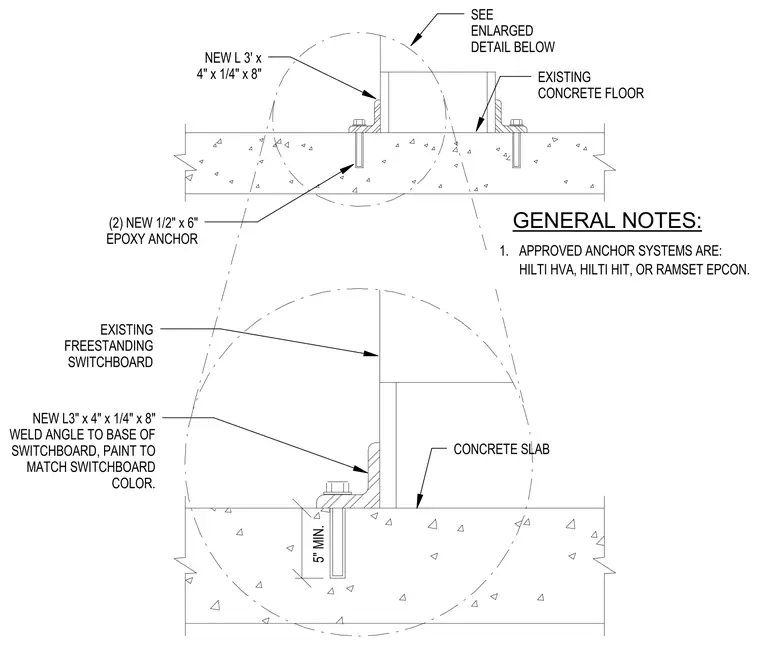

An existing freestanding switchboard is secured to an existing concrete floor slab with a new 3 inches by 4 inches by 1/4 inch by 8 inches steel angle. The angle is welded to the base of the switchboard and finished with paint matching the switchboard color. Two new 1/2 inch by 6 inches epoxy anchors fasten the angle bracket into the 5 inches minimum concrete slab. Approved anchor systems include Hilti HVA, Hilti HIT, or Ramset Epcon.
GENERAL NOTES: 1. APPROVED ANCHOR SYSTEMS ARE: HILTI HVA, HILTI HIT, OR RAMSET EPCON. SEE ENLARGED DETAIL BELOW EXISTING CONCRETE FLOOR NEW L 3' x 4" x 1/4" x 8" (2) NEW 1/2" x 6" EPOXY ANCHOR EXISTING FREESTANDING SWITCHBOARD NEW L3" x 4" x 1/4" x 8" WELD ANGLE TO BASE OF SWITCHBOARD, PAINT TO MATCH SWITCHBOARD COLOR. CONCRETE SLAB 5" MIN.
