Category 6 Cable Routing and Telecommunication Outlets

Elements

About this detail

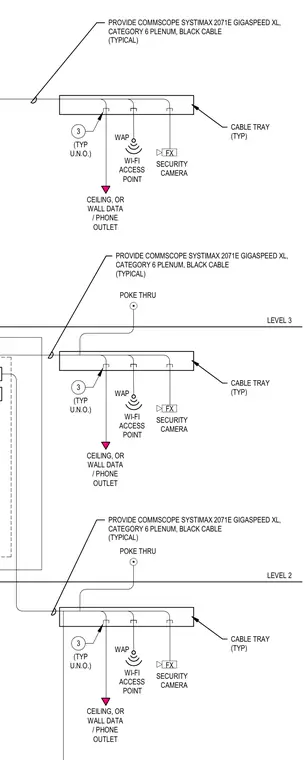

This telecommunications schematic details the distribution of CommScope Systimax 2071E GigaSpeed XL Category 6 plenum black cable routing through cable trays on Level 2 and Level 3. The cabling services ceiling or wall data and phone outlets, Wi-Fi access points, and security cameras, with vertical floor transitions handled via poke-through assemblies typical unless otherwise noted.
