Backbox Mounting Detail

Materials

Elements

About this detail

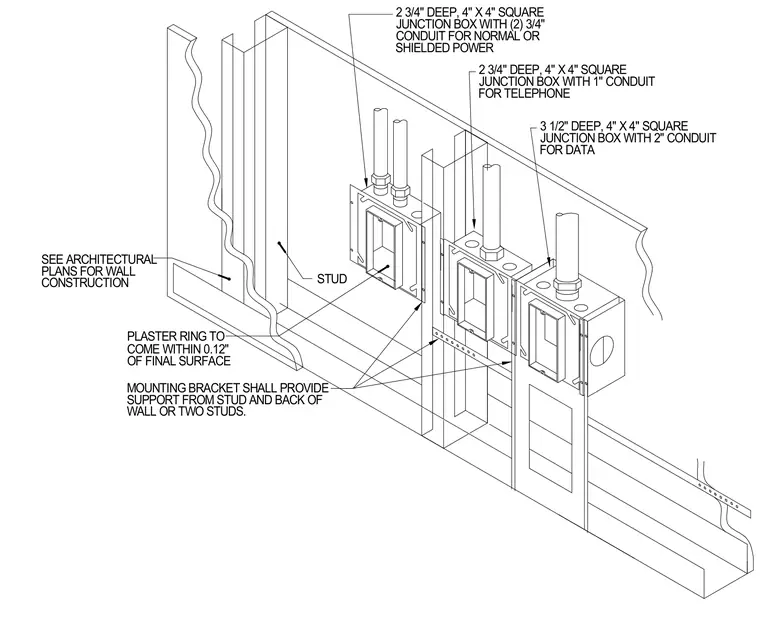

Three square junction boxes mount to wall studs using brackets that provide support from a stud and the back of the wall or two studs. The assembly includes a three-and-a-half-inch deep, four-by-four-inch square junction box with a two-inch conduit for data, a two-and-three-quarter-inch deep, four-by-four-inch square junction box with a one-inch conduit for telephone, and a two-and-three-quarter-inch deep, four-by-four-inch square junction box with two three-quarter-inch conduits for normal or shielded power. A plaster ring comes within twelve-hundredths of an inch of the final surface, and wall construction is sized per architectural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
