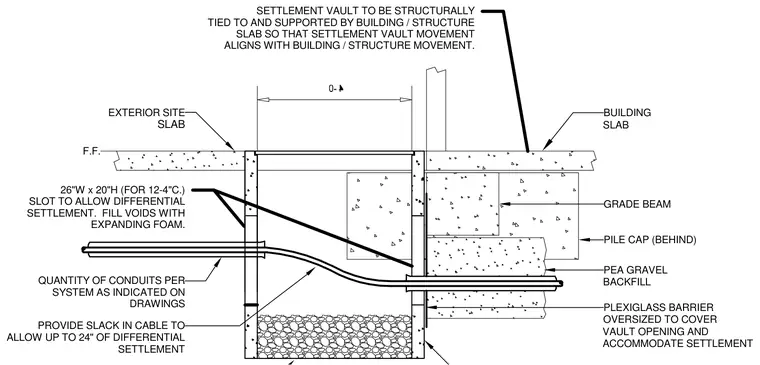

The settlement vault is structurally tied to and supported by the building slab so that vault movement aligns with the primary structure. A twenty-six-inch wide by twenty-inch high slot accommodates differential settlement, with voids filled using expanding foam. An oversized plexiglass barrier covers the vault opening to accommodate movement while maintaining separation from exterior site slabs and pea gravel backfill. Conduits pass through the transition with slack in cables provided to allow up to twenty-four inches of differential settlement.
BUILDING SLAB GRADE BEAM PILE CAP (BEHIND) EXTERIOR SITE SLAB QUANTITY OF CONDUITS PER SYSTEM AS INDICATED ON DRAWINGS F.F. PEA GRAVEL BACKFILL PLEXIGLASS BARRIER OVERSIZED TO COVER VAULT OPENING AND ACCOMMODATE SETTLEMENT SETTLEMENT VAULT TO BE STRUCTURALLY TIED TO AND SUPPORTED BY BUILDING / STRUCTURE SLAB SO THAT SETTLEMENT VAULT MOVEMENT ALIGNS WITH BUILDING / STRUCTURE MOVEMENT. PROVIDE SLACK IN CABLE TO ALLOW UP TO 24" OF DIFFERENTIAL SETTLEMENT SLOT TO ALLOW DIFFERENTIAL SETTLEMENT. FILL VOIDS WITH EXPANDING FOAM. 26"W x 20"H (FOR 12-4"C.)
