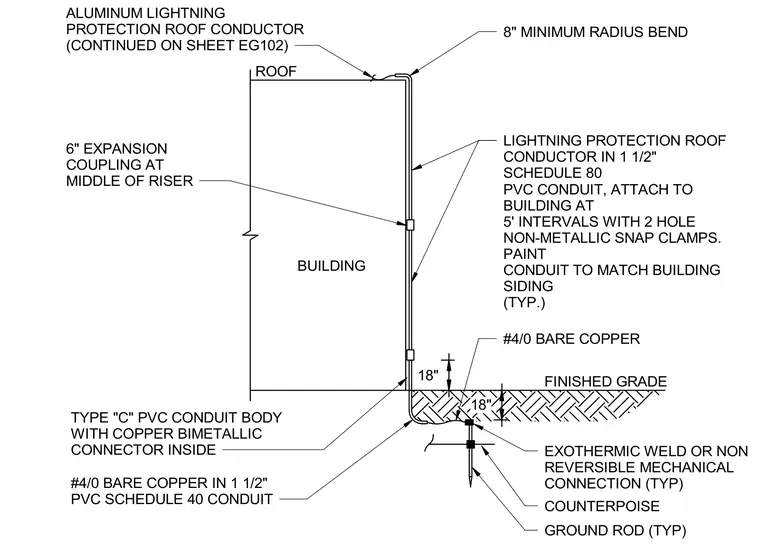

An aluminum lightning protection roof conductor transitions down the exterior wall with an eight-inch minimum radius bend into a one-and-a-half-inch schedule 80 PVC conduit. The conduit attaches to the building exterior at five-foot intervals using two-hole non-metallic snap clamps and is painted to match the building siding. A six-inch expansion coupling is positioned at the middle of the riser. Near the finished grade, a type C PVC conduit body houses an internal copper bimetallic connector transitioning the run to a number 4/0 bare copper conductor enclosed in a one-and-a-half-inch schedule 40 PVC conduit. The grounding system connects to a ground rod via an exothermic weld or non-reversible mechanical connection and ties into a counterpoise.
ALUMINUM LIGHTNING PROTECTION ROOF CONDUCTOR (CONTINUED ON SHEET EG102) ROOF 8" MINIMUM RADIUS BEND BUILDING 6" EXPANSION COUPLING AT MIDDLE OF RISER FINISHED GRADE LIGHTNING PROTECTION ROOF CONDUCTOR IN 1 1/2" SCHEDULE 80 PVC CONDUIT, ATTACH TO BUILDING AT 5' INTERVALS WITH 2 HOLE NON-METALLIC SNAP CLAMPS. PAINT CONDUIT TO MATCH BUILDING SIDING (TYP.) #4/0 BARE COPPER EXOTHERMIC WELD OR NON REVERSIBLE MECHANICAL CONNECTION (TYP) GROUND ROD (TYP) TYPE "C" PVC CONDUIT BODY WITH COPPER BIMETALLIC CONNECTOR INSIDE #4/0 BARE COPPER IN 1 1/2" PVC SCHEDULE 40 CONDUIT COUNTERPOISE 18" 18"
