Fire Alarm Mounting Details

Elements

About this detail

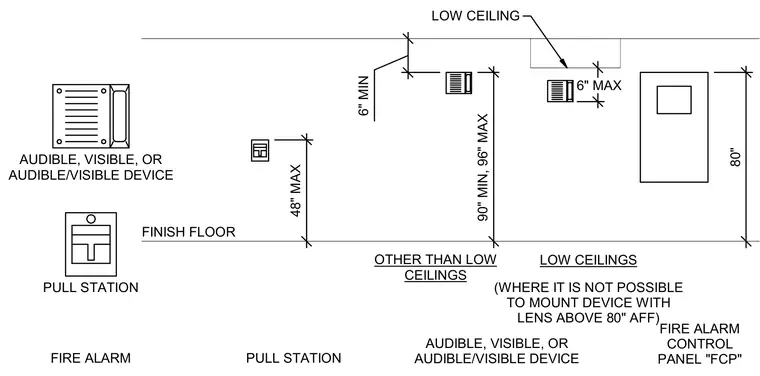

Fire alarm pull stations mount at a maximum height of forty-eight inches above the finished floor. Audible, visible, or combined audible and visible notification devices mount between ninety and ninety-six inches maximum above the finished floor for standard ceiling heights, and within six inches maximum of low ceilings where lenses cannot reach eighty inches above the finished floor. The fire alarm control panel mounts at eighty inches above the finished floor.
