Electrical · E-HTCCJ

Roof Conduit Penetration

Materials

Steel Stainless Steel Membrane / Roofing

Elements

Roofs Waterproofing / Flashing Roof / Floor Openings

About this detail

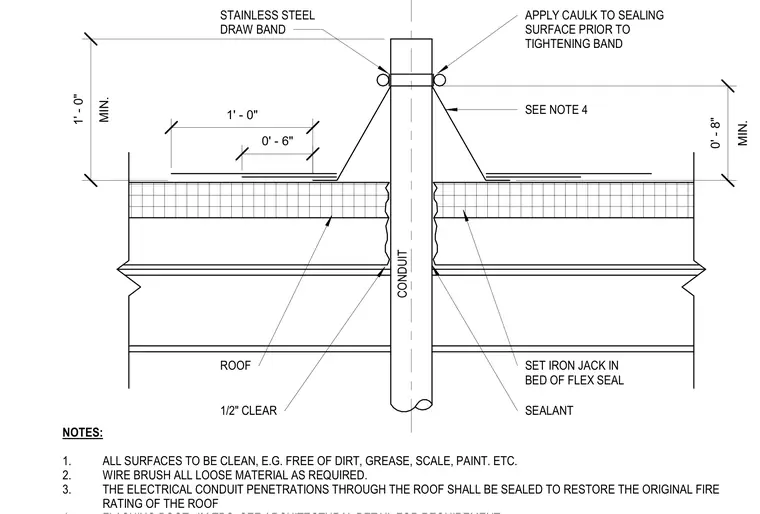

An electrical conduit penetrates the roof assembly through a set iron jack bedded in flex seal. Caulk is applied to the sealing surface prior to tightening the stainless steel draw band. All contact surfaces must be clean and free of dirt, grease, scale, and paint, with loose material wire brushed as required. The roof penetration is sealed to restore the original fire rating.
