Two-Way Emergency Communication Station and Signage Detail

Elements

About this detail

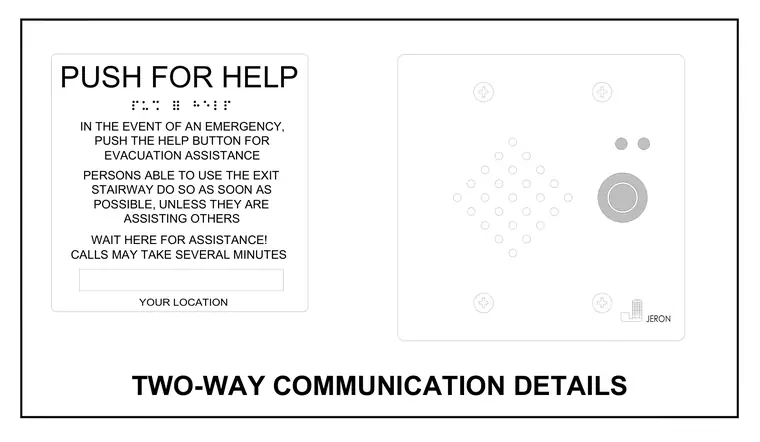

An emergency communication station features a call button, speaker grille, status indicator lights, and instructional signage with Braille text. The signage instructs building occupants to push the help button for evacuation assistance, wait for assistance, and specifies that calls may take several minutes. The station faceplate is secured with four corner screws and connects to a two-way communication system. The layout provides clear instructions and accessibility features specifically designed for exit stairways and areas of refuge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
